| Hoofd specificaties |
| Afmetingen |
140 x 140 x 25 mm |
| Kleur |
Bruin |
| Aantal |
1 |
| Bearing Type |
SSO2 |
| Connector |
4-pins PWM |
| Rotatiesnelheid |
0-1500 rpm; 0-1250 rpm met L.N.A |
| Geluidssterkte |
24,8 dBA ; 19,7 dBA met L.N.A |
| Luchtstroom |
155,6 m³/h ; 127,1 m³/h met L.N.A |
| Statische druk |
2,56 mm-H2O ; 1,3 mm-H2O met L.N.A |
| Energieverbruik |
2,28W |
| Voltage |
12V DC |
| Amperage |
0,19A |
| Levensduur |
> 150.000 uur |
| Fabrieks garantie |
6 jaar carry in |
| SKU |
NF-A14x25 G2 PWM |
| EAN |
9010018100617 |
|
|
| cybenetics certificering |
| Luchtstroomclassificatie |
Diamond |
| Statische drukclassificatie |
Titanium |
| Geluid bij 70% ventilatorsnelheid |
21,90 dBA |
| Geluid bij volledige ventilatorsnelheid |
32,30 dBA |
| Maximale statische druk |
2,51 mm-H2O |
| Maximale luchtstroom |
94,59 cfm |
| Statische druk op 25 dBA |
1,62 mm-H2O |
| Luchtstroomop 25 dBA |
73,31 cfm |
| Link naar het testrapport |
https://www.cybenetics.com/evaluations/fans/140/ |
|
|

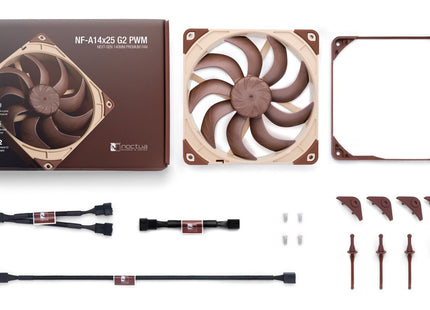

| Doos inhoud |

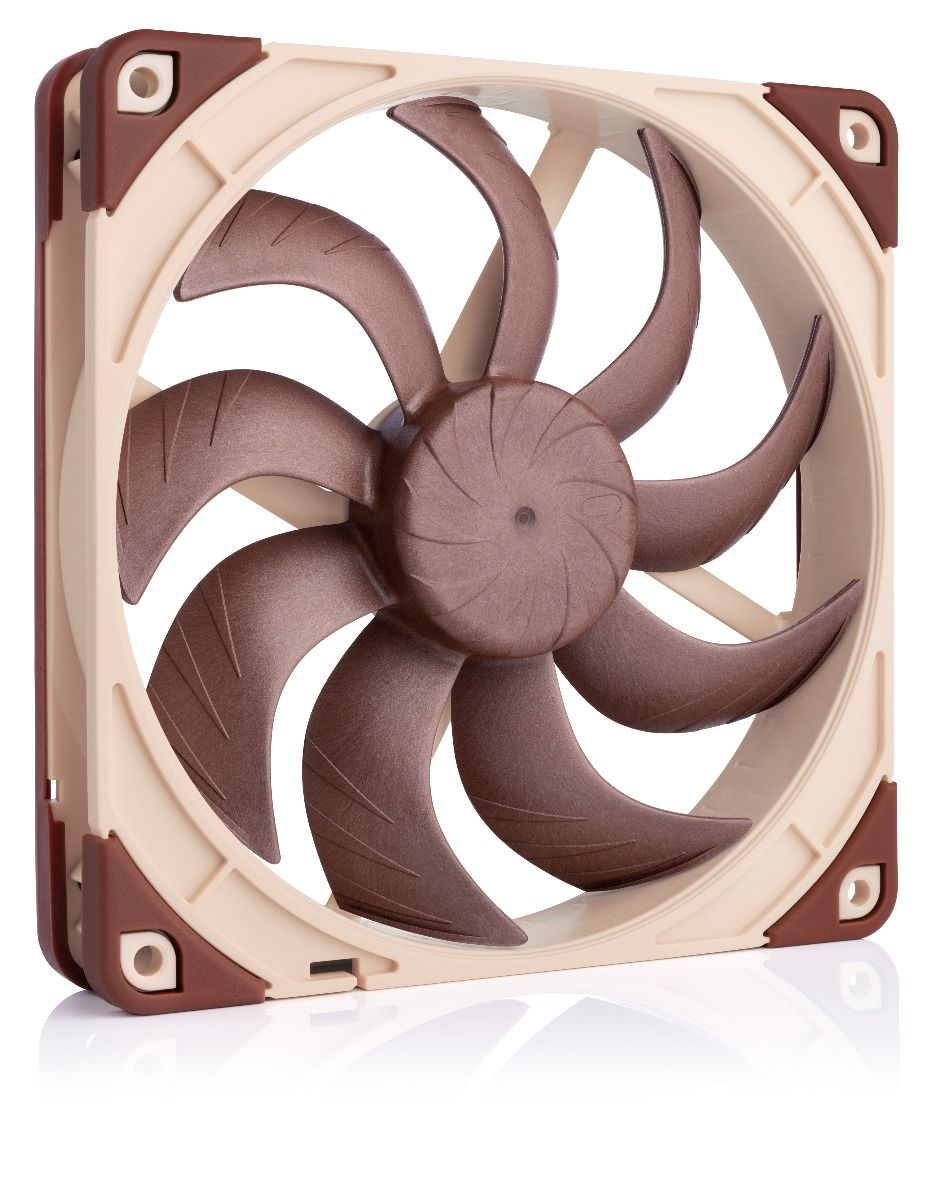

| 1x Noctua NF-A14x25 G2 PWM Ventilator, NA-RC16 Low-Noise Adapter (L.N.A.), NA-YC1 4-pins PWM splitterkabel, NA-EC1 verlengkabel van 30 cm, 4x NA-AV2 anti-vibratiebevestigingen, NA-AVG2-LR anti-vibratiepakking, 4x NA-AVP1-LR belastingontlastende anti-vibratiekussens, 4x ventilator schroeven |
